[错误代码问题] 理光复印机关闭2049等端口

[复制链接]
发表于 2023-4-5 20:23:46 | 显示全部楼层 |阅读模式
型号展示
机器型号: IM_2500_3000_3500_4000_5000_6000

注意:本帖含有图片和附件资料 登录 才可查看,没有帐号?

您需要 登录 才可以下载或查看,没有账号?立即注册

×
症状
客户对网络进行安全扫描时,发现理光MFP机器开启了2049端口,但在机器的Web页中未找到相关的设置。

维修过程
在智能面板与MFP控制器进行通讯时使用了一些端口,同时对外部网络开放,造成进行安全扫描时出现警告。出于安全原因,可以关闭这些端口。

使用的端口包括:
- 111/tcp
- 1022/tcp
- 1023/tcp
- 2049/tcp
- 18315/tcp
- 54080/tcp
- 54443/tcp
- 65000/tcp1
- 65001/tcp1
- 111/udp1,2
- 1022/udp
- 1023/udp
1  这些端口预计在之后的固件中进行修复;
2  端口111/udp 今在以下机型中出现:D219/D220/D214/D196/D236, D259, M0B0/D0A0

要关闭这些端口,需要确认并升级固件;

Phase 1
Phase 2
Model M0B1/M0B2
Network Support v17.21
Fix not required. Ports 111(UDP), 65000(TCP), and 65001(TCP) are already closed.
Model D0BX/D0BY/D0BZ
Fix implemented from 1st mass production.
Network Support v17.29
Model M0CL/M0CM
Fix implemented from 1st mass production.
Network Support v17.29
Model D255/D256
Network Support v15.67
Network Support v15.67
Model D0BT/D0BV/D0BW
Fix implemented from 1st mass production.
Fix implemented from 1st mass production.
Model D0B4
Fix implemented from 1st mass production.
CTL System v1.04
Model D257/D258
Network Support v16.53
Network Support v16.54
Model D260/D261
Network Support v16.53
Network Support v16.54
Model D0CM/D0CN
Fix implemented from 1st mass production.
Fix implemented from 1st mass production.
Model D0CP/D0CQ
Fix implemented from 1st mass production.
Fix implemented from 1st mass production.
Model D0C5/D0C6/D0C4/D0AP
Network Support v17.28
Network Support v17.28
Model D284/D290/D285/D291/D286/D292/D287/D293/D288/D294/D289/D295
Network Support v16.54
Network Support v16.54
Model M0AN
TBD
TBD
Model M0A0
Network Support v16.39
Network Support v16.39
Model D219/D220/D214/D196/D236
Network Support v15.32.1
Network Support v15.32.1
Model D298/D297/D299/D296
Network Support v16.60
Network Support v16.61
Model D0CA/D0C9/D0C8/D0CB
Fix implemented from 1st mass production.
Fix implemented from 1st mass production.
Model D259
Network Support v15.46.1
Network Support v15.46.1
Model D223/D224/D225
Network Support v16.43
Network Support v16.44
Model D238/D239/D240/D241/D242/D243/D244
Network Support v15.73
Network Support v15.76
Model D0AC/D0AS/D0AD/D0AT/D0AH/D0AX/D0AJ/D0AY/D0AE/D0AV/D0AF/D0AG/D0AW
Network Support v15.72
Network Support v15.75
Model D0BL/D0BM/D0BJ/D0BK/D0BN/D0BP/D0BQ/D0D7/D0D8
Package(ALL) v1.03.1
Package(ALL) v1.03.1
Model M0AJ/M0AL
Network Support v15.77
Network Support v15.77
Model D262
Network Support v15.31
TBD
Model D0A5/D0AK/D0AL/D0AM/D0BG
Network Support v17.22
Fix not required. Ports 111(UDP), 65000(TCP), and 65001(TCP) are already closed.
Model M0BH/M0BJ/M0BK/M0BL/M0CN
Network Support v17.21
Fix not required. Ports 111(UDP), 65000(TCP), and 65001(TCP) are already closed.
Model D0A0/D0AA/D0AB
CTL System v1.10
CTL System v1.10

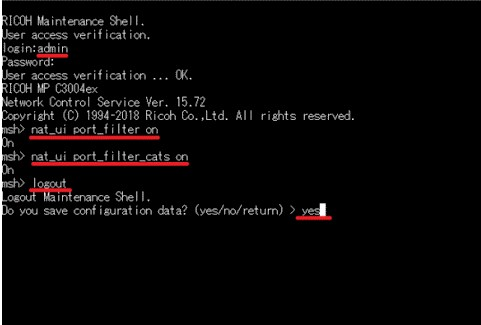

使用telnet命令关闭端口;
telnet 机器的ip地址;
登录管理员后输入以下命令;
nat_ui port_filter on
nat_ui port_filter_cats off       注:该命令用于关闭18315/tcp端口
logout,输入yes退出系统

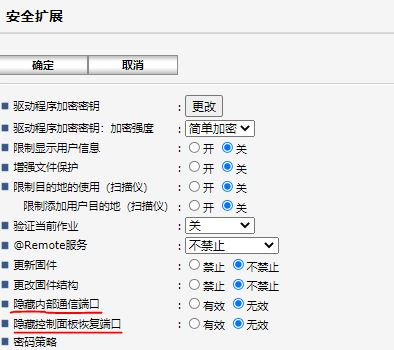

同样可以在MFP网页中进行设置。
将以下2项设置为有效。
相关的机型:
Black&WhiteMultifunction
IM2500,3000,3500,4000,5000,6000
IM2702
IM430F
IM7000,8000,9000
MP305+SP
MP2555SP,3055SP,3555SP
MP4055SP,5055SP,6055SP
MP6503SP,7503SP,9003SP
ColorMultifunction
IMC400F
IMC2000,C2500
IMC3000,C3500
IMC4500,C6000
IMC6500,C8000
MC2001
MPC406ZSP
MPC407SP
MPC2004SP,C2504SP
MPC2004ex,C2504ex
MPC3004SP,C3504SP
MPC3004ex,C3504ex
MPC4504SP,C6004SP
MPC4504ex,C6004ex
MPC6503SP,C8003SP
SPC360SFNw
在论坛充值金币后成为超级辣友(800金币自动成为超级辣友)后。理光/基士得耶 、维修案例两个板块享有回帖权限。
发表于 2023-4-5 20:27:59 | 显示全部楼层
多谢分享,学习一下
